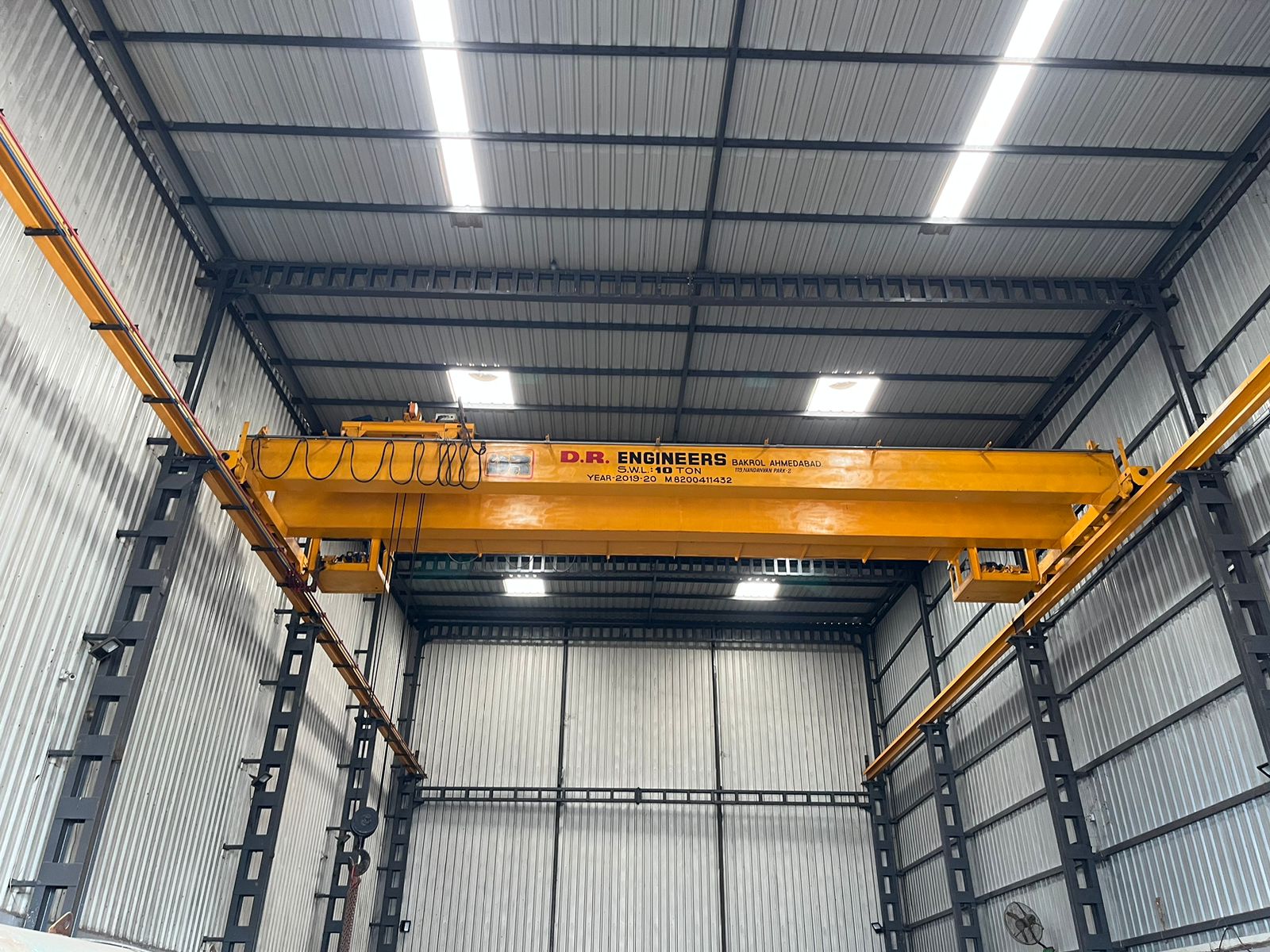

Specialist In E.O.T. Cranes
The name on the jib crane stands for superior quality product. They are an important parts of any material handling system. They help reduce labour cost by avoiding the time lost on wating for an overhead crane or forklift. A jib crane can be easily handled by one person and is very cost-effective. Capacities is available up to 3 TONS and span up to 4 meters as standard

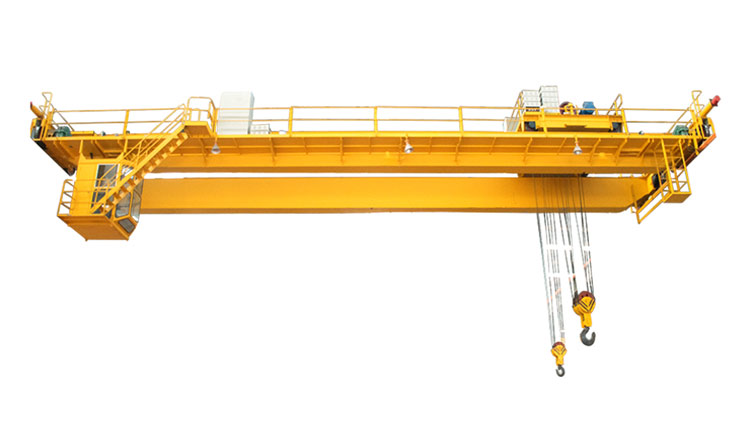

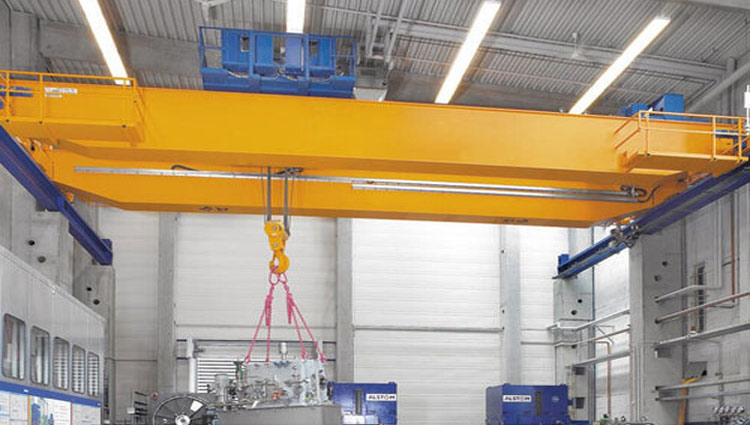

RANGE OF SPECIFICATIONS
Safe Working Load : Starting from 1.0 TON to 100 TON
Spans : Up to 40 mtr.
Height of lift : As per customer specifications.
Class of duty Standards : M1, M2, M3, M4, M5, M6, As per IS 3177 / IS 3983 / IS 807 - 2008
- Speeds : Selected depending on client specification / application / shed dimension. Multiple speed can be provided foe each motion through VVF drive / Mechanical means.
- Crane Control : From floor through Pendant Push Buttons / Open Cabin / Totally Enclosed Cabin / Radio Remote Control
- Drive System : Single / Twin drive with squirrel cage / slip ring Induction Motors, through Totally Enclosed, oil immersed helical gearboxes.
- Motors : Foot mounted, IEC Frame Size, Crane Duty motors for Main Hosting, Auxiliary Hosting, Cross travel and Long travel.
- Brakes : Electro Hydraulic Thruster Brakes for all motion. DC/AC Electro Magnetic Brakes or additional can be provided on
- Power Supply System : To Hoist and Cross Travel through Trailing Cables/Shrouded Conductors. To Crane through Trailing Cable / MS Angle Iron Conductors / G.I. Shrouded Bus Bar System (depending on customer’s choice)
