Specialist In Electric Wire Rope Hoist
D.R. Hoists are compact, robust & elegant in appearance. D.R. hoists are suitable to the requirement of your application.
Custombulit Hoist :
Flexible Trolley type Hoist for curved path
Heavy duty Hoist - class II & IV duty
MicroSpeed Hoist
(1/10th of normal hoisting speed)
Flame Proof Hoist
Highlift Hoist
High speed Hoist
D.R. IS USING SAFE TECHNOLOGY IN THEIR ALL PRODUCTS
HOISTS : D.R. Wire Rope Electric Hoist are designed in accordance with IS-3938-1999. D.R. Hoists are designed in modular giving positive Splash Lubrication. Motors are squirrel cage induction confirming to IS-325, Brakes are of Fail Safe type in case of failure og electric supply, brake acts immediately. Heavy duty steel forged hooks confirming to IS-3815. Special plough steel tasted Wire Rope confirming to IS-2266. Pendent push Button station suspended form the hoist with wire rope operating at 110 or 420V or 240V For customer required which ensures safety to the operator.
"D.R." Wire Rope Hoist - Dimensions, Weights & Performance Date
capacity |
Tonnes |
0.5 |
1.0 |
1.0 |
2.0 |
2.0 |
3.0 |
3.0 |
5.0 |
7.5 |
10.0 |
12.5 |
15.0 |
20.0 |
25.0 |
(Safe Working Load) |
|||||||||||||||
High of Lift |
Mtr. |
3.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0
| 6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
Hoisting Speed |
m/min. |
4.5 |
4.0 |
4.0 |
3.5 |
2.8 |
3.3 |
2.5 |
3.3 |
2.7 |
2.0 |
2.0 |
2.0 |
1.8 |
1.8 |
Cross Travel Speed |
m/min. |
10.0 |
10.0 |
11.0 |
11.0 |
12.0 |
12.0 |
12.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
6.0 |
|
Hoisting Motor |
HP |
0.5 |
1.25 |
1.25 |
3.0 |
3.0 |
5.0 |
5.0 |
7.5 |
10.0 |
12.5 |
12.5 |
15.0 |
20.0 |
25.0 |
RPM |
RPM |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
960 |
960 |
960 |
960 |
Cross Travel Motor |
HP |
0.125 |
0.125 |
0.5 |
0.5 |
0.5 |
0.5 |
1.0 |
1.0 |
1.0 |
1.0 |
1.5 |
1.0+1.0 |
1.0+1.0 |
|
RPM |
RPM |
133. |
1330 |
1330 |
1330 |
960 |
960 |
960 |
960 |
960 |
960 |
960 |
960 |
960 |
|
Number of Fails |
2 |
2 |
2 |
2 |
4 |
2 |
4 |
4 |
4+6 |
4+6 |
4+6 |
6+8 |
6+8 |
6+8 |
|
Wire Rope Dia |
mm |
6.0 |
8.0 |
8.0 |
10 |
8.0 |
12.0 |
10.0 |
12.0 |
14.0 |
16+14 |
16.0 |
18+16 |
18+16 |
20+18 |
Test Load |
Tonnes |
0.62 |
1.25 |
125 |
2.50 |
2.50 |
3.75 |
3.75 |
6.25 |
9.37 |
12.50 |
15.62 |
18.75 |
25.00 |
31.25 |
Weight (Aprox.) |
Kgs. |
||||||||||||||

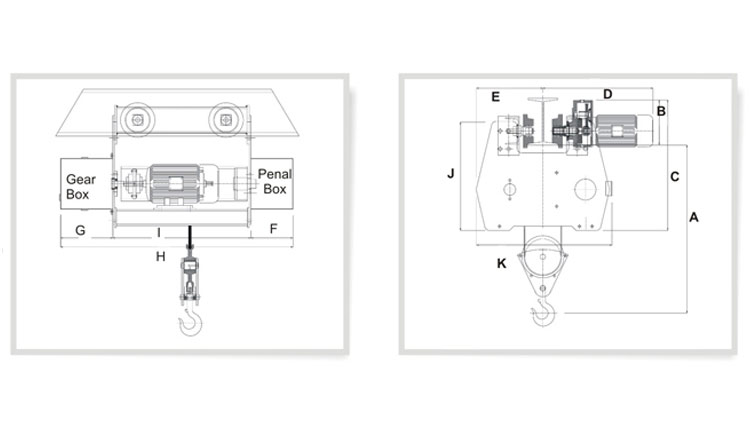

Dimensions, Weights & Performance Data |
|||||||||||||||
A |
mm. |
700 |
700 |
900 |
900 |
1250 |
1250 |
1250 |
1800 |
||||||
B |
mm. |
180 |
180 |
220 |
220 |
270 |
270 |
270 |
320 |
320 |
320 |
320 |
|||
C |
mm. |
580 |
580 |
700 |
700 |
800 |
800 |
800 |
740 |
740 |
740 |
740 |
|||
D |
mm. |
460 |
460 |
420 |
420 |
550 |
550 |
550 |
680 |
380 |
680 |
680 |
|||
E |
mm. |
270 |
270 |
360 |
360 |
430 |
430 |
430 |
450 |
450 |
450 |
450 |
|||
F |
mm. |
140 |
140 |
160 |
160 |
200 |
200 |
200 |
270 |
270 |
270 |
270 |
|||
G |
mm. |
100 |
100 |
160 |
160 |
200 |
300 |
200 |
270 |
270 |
270 |
270 |
|||
H |
mm. |
680 |
880 |
930 |
1030 |
1140 |
1140 |
1140 |
1510 |
||||||
I |
mm. |
440 |
640 |
610 |
710 |
740 |
740 |
740 |
970 |
||||||
J |
mm. |
420 |
420 |
640 |
640 |
680 |
680 |
680 |
930 |
930 |
930 |
930 |
|||
K |
mm. |
620 |
620 |
780 |
780 |
690 |
990 |
990 |
1400 |
1400 |
1400 |
1400 |
|||
