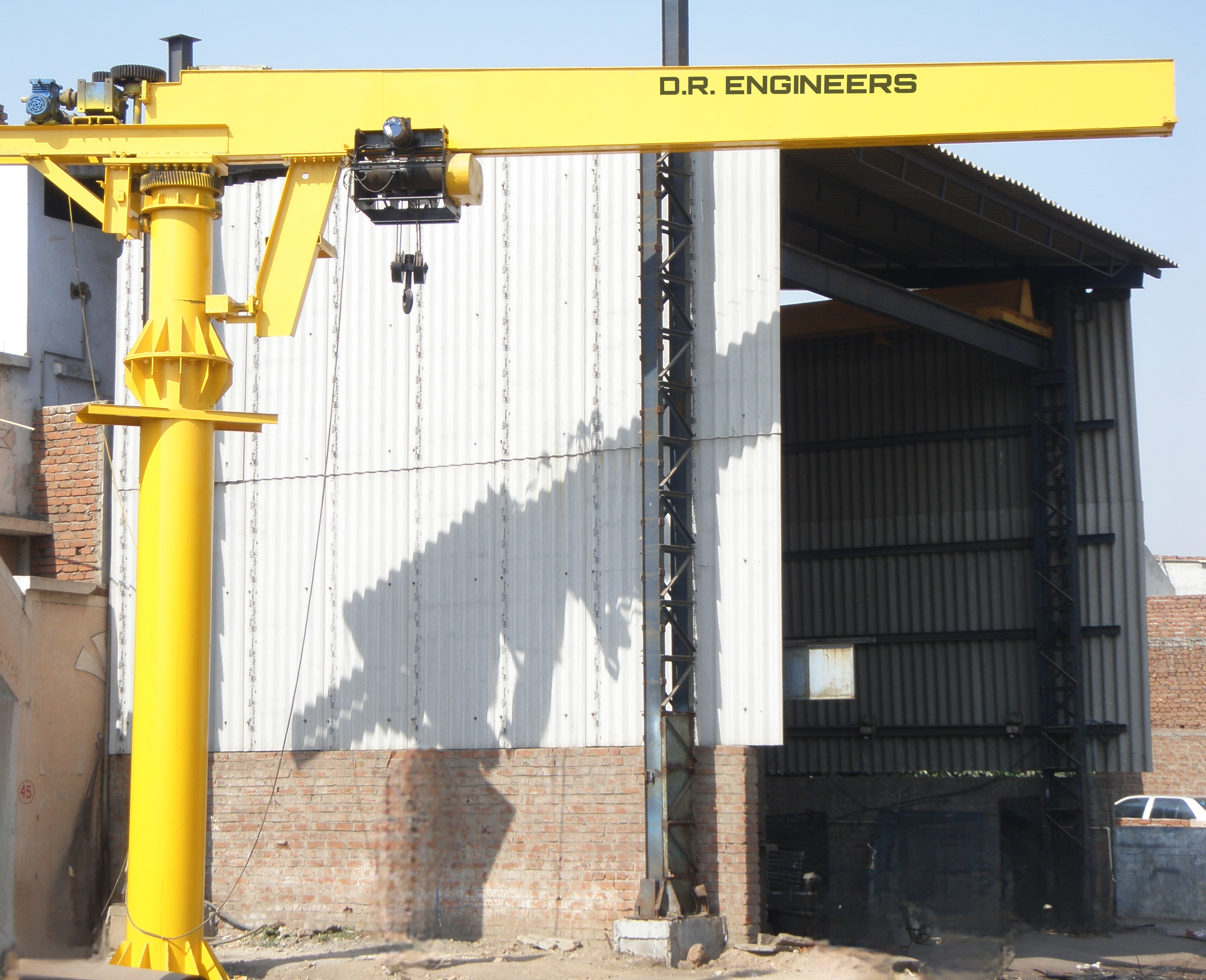

JIB CRANE

The name on the jib crane stands for superior quality product. They are an important parts of any material handling system. They help reduce labour cost by avoiding the time lost on wating for an overhead crane or forklift. A jib crane can be easily handled by one person and is very cost-effective. Capacities is available up to 3 TONS and span up to 4 meters as standard

D.R.

Option includes free standing or wall mounted. By combining lightweight construction techniques we have a developed a jib crane that is not only light weight but produces minimum amount of friction thus reducing operator fatigue and wear and tear.

Optional Features: Two speed motion

• Jib crane designed conforming to IS 807 & IS 3177
• Jib arms shall be fabricated for heavy section from I-Beam or a triangular truss construction to keep the deflection in acceptable limits.
• Self-aligned type double roller bearing with thrust & roller bearing take care of horizontal, vertical and radial thrust loads.
• Jib arm is suitable to accommodate trolley with chain pulley block for manual travel and lifting operations or electric wire rope hoist for electric operation.

Jib crane are available in lifting capacities ranging from 250kgs to 3000kgs. And arm radius from 2 mtr. To 4 mtrs. To suit the required application
