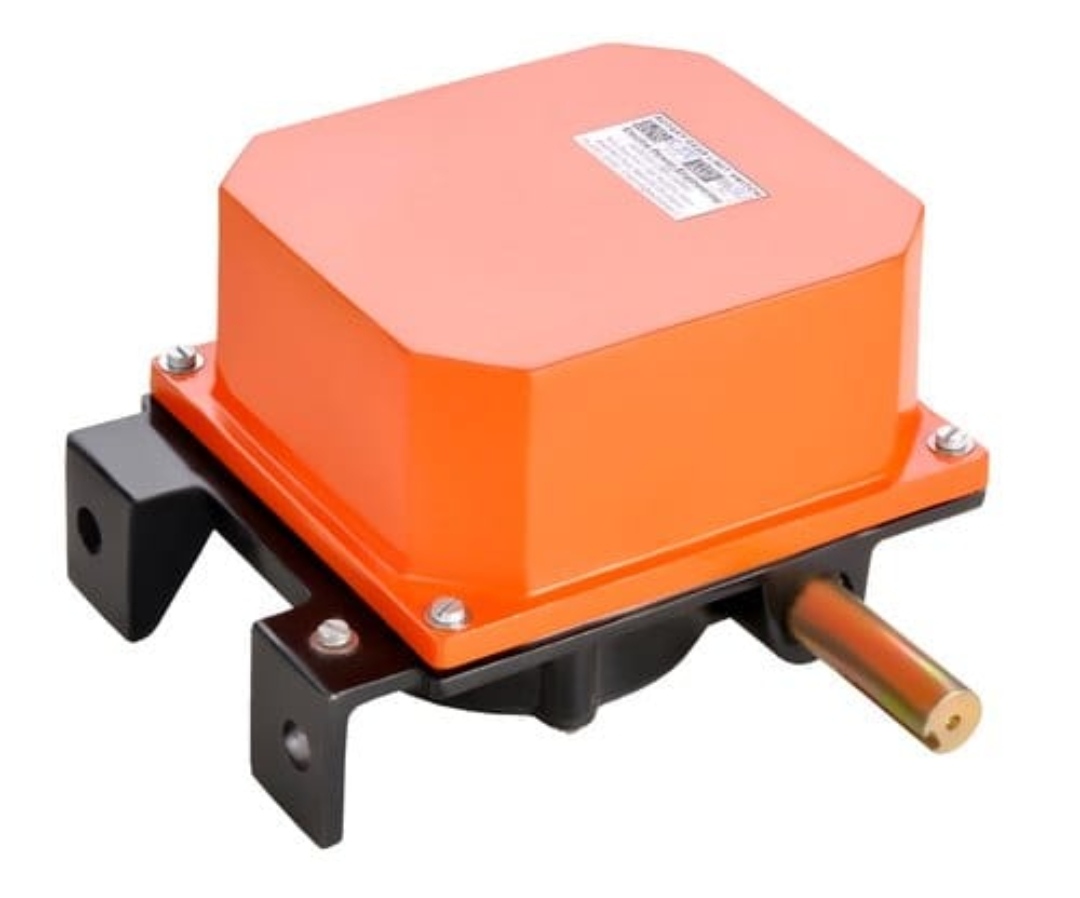

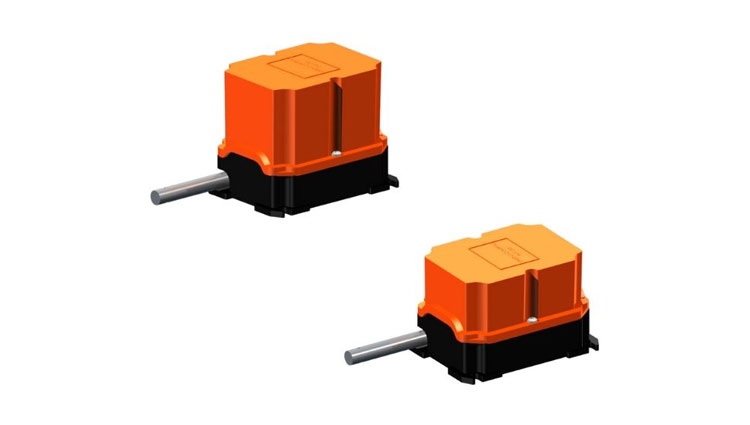

ROTARY GEARED LIMIT SWITCH

Technical Data:

Body Material – Aluminium die cast
Gear Ratio – 1:48, 1:60
Cable Entries – 3/4” conduit
Rate Voltage Insulation – 500V A.C.
No. of Contact – 6 Maximum
Protection Degree – IP-55 Confirming to IS-13947 (Part-1) 1993
Drive – Worm Drive
Contact Material – Double Break Silver Cadmium
Thermal Test Current – 10 Amps.
Cam setting – Adjustable
